UC4 — Sat Failure

Abstract

A single satellite captures one high-priority image while flying over a pole (far from any ESTRACK ground station). Shortly afterwards — and before the satellite has any line-of-sight with any GS — the satellite is killed by a Destroy hardware event. We then watch whether the image still reaches the ground via peer satellites. Run on both engines: EDFS is expected to deliver via inter-satellite links; TUS is expected to lose the file entirely.

Success Condition

The run ends successfully if the image reaches any ground station despite the producer being destroyed.

Detailed description

The producer satellite is placed on an orbit whose initial position at t=0 is high-latitude and out of LOS with every ESTRACK station. The producer's agent writes one file of size S, with priority high, and exits. Roughly T_destroy seconds after the photo is taken — but always before the producer's first contact window with any GS — a Destroy hardware event fires on the producer, irreversibly taking it offline.

For EDFS, success requires that the producer has had enough time (between the photo and the destroy) to replicate at least one block of the file to at least one surviving peer satellite, which then carries it forward until a GS comes into LOS. For TUS, the file existed only on the producer and the run becomes a control: TUS should fail to deliver, demonstrating the loss-mode that EDFS is supposed to mitigate.

The other satellites in the constellation do nothing besides act as relays; the seven ESTRACK ground stations all have END_ON_ANY=true so the first RECEIVED terminates the run.

Producer exit ordering (why Destroy does not mark the run failed)

The producer's agent writes its single file and exits with code 0 within seconds of activation — long before Destroy fires at T_destroy (≥ 5m). This ordering is deliberate and load-bearing: the operator decides the experiment's terminal Success/Failure from the agent containers' exit codes (evaluateAgentExitCodes), not from delivery. Because the producer's agent container has already terminated 0 before Destroy, the SIGKILL that Destroy delivers to the (now-empty) producer pod does not turn the run into a Failure. The producer agent must therefore always exit 0 right after producing; do not give it long-running / post-photo behaviour in UC4.

Whether the file actually reached the ground (the real UC4 outcome) is determined by the ground-station agents' end-request on first RECEIVED, and is read from the delivery metrics — independently of the producer's destruction.

Main goal

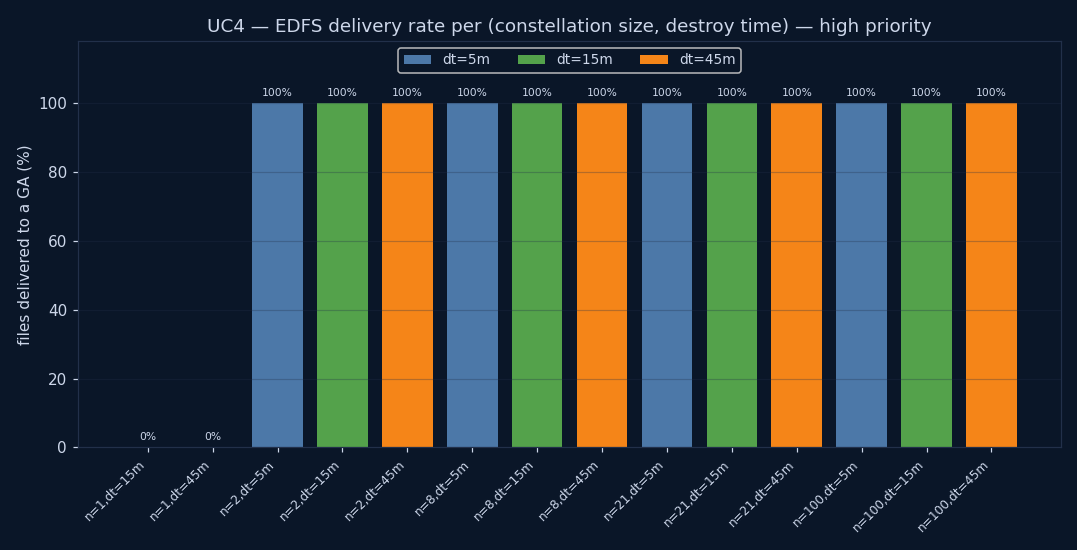

Demonstrate that EDFS survives the loss of the file's original producer for an image with no remaining copies, and quantify the trade-off. The headline deliverable is a delivery-success surface success(n_sat, dt) per engine, where the two swept variables are:

• n_sat — number of satellites in the layout (sat_count);
• dt — time between the photo being taken (≈ t=0) and the producer's total destruction (T_destroy, the Destroy event's startOffset).

success is the fraction (over repeats) of runs in which the image reached at least one GS. EDFS is expected to dominate TUS across the whole grid:

• Binary outcome: did the file reach a GS? (delivered ∈ {true, false})
• Conditional metric: when it does reach a GS, what was time-to-first-delivery?
• Comparison: EDFS.delivered = true && TUS.delivered = false on every (sat_count, T_destroy) combination.

KPI:

• EDFS delivery success rate on UC4 is ≥ 80% at sat_count ≥ 8.
• TUS delivery success rate on UC4 is 0% by construction.

Parameters

TUS parameter coverage. priority (an EDFS-only axis) and RF are both ignored by TUS. The TUS sweep therefore reduces to (sat_count, T_destroy); priority and RF are omitted from the TUS run-id entirely. This is by design — UC4 measures binary "does the file survive the producer's loss?", and on TUS that answer is "no" for every parameter combination, so a single run per (sat_count, T_destroy) suffices as the negative baseline.

Assumptions

• The inter-ground-station network is broadband and disturbance-free. Every pair of ground stations is treated as permanently linked, independent of orbital line-of-sight: the link is fixed at 10 Gbit/s with zero packet loss, and only its propagation delay scales with the great-circle distance between the two stations. Satellite links, by contrast, exist only while the two nodes are in line-of-sight and their bandwidth degrades with distance. The only event that can disturb a ground-station-to-ground-station link is a hardware failure injected as a HardwareEvent (e.g. NetworkFailure or NetworkBandwidthReduced) on one of the two stations.

Expectations

• For TUS engine we expect all UC4 test will timed-out.
• For EDFS engine we expect UC4 tests with low number of satellites to time-out.

Additional metrics

Beyond yass_file_delivery_seconds:

• delivery_success boolean: count(file_delivered events) ≥ 1 per run.
• For EDFS, the fragmentation state at the moment of Destroy: yass_edfs_replica_completeness{cid, fsNode} sampled at the HardwareDestroyActive k8s event timestamp. If the producer hadn't managed to replicate any blocks before being destroyed, the run will fail and this snapshot will explain why.
• "Survival snapshot" per fsNode at T_destroy: yass_volume_used_bytes, yass_container_memory_bytes for every node alive at that instant.
• For TUS, "what would have delivered" — total bytes the producer managed to push out before Destroy, so we can quantify the loss volume.
• Total network cost: sum(yass_network_tx_bytes_total) aggregated over the whole constellation. For successful EDFS runs this tells us "how expensive was the rescue" — i.e. how many bytes the constellation had to shuffle through ISLs to compensate for the producer's loss.
